160 lots located at Hailsham. Closing Sunday 26th July from 6pm.
Lot 108:
Description

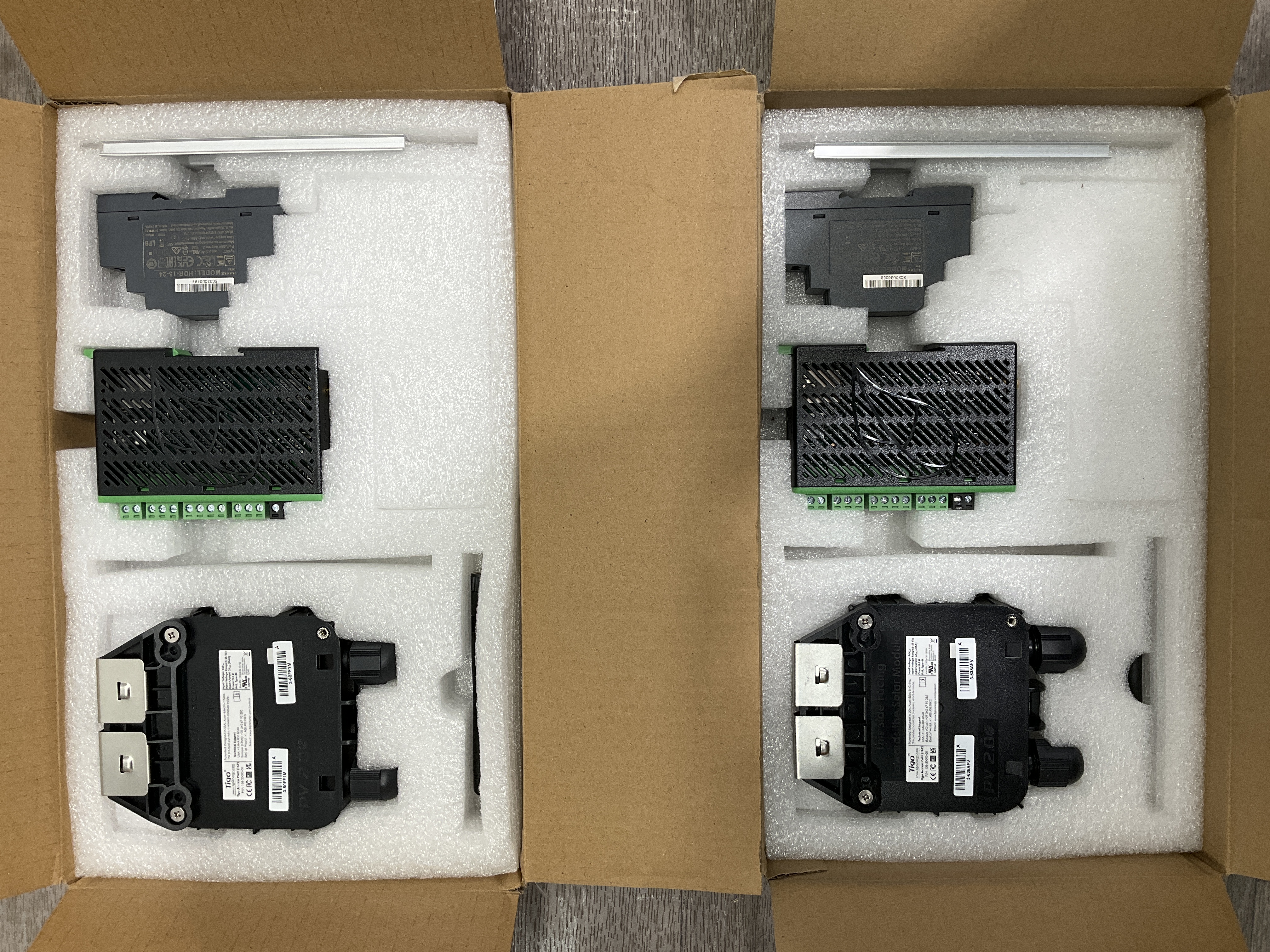

This lot comprises two matching sets of Tigo Energy solar photovoltaic monitoring and communication equipment, each housed in its original foam-lined cardboard packaging. Each individual kit contains one Tigo Cloud Connect Advanced (CCA) unit, one Tigo Access Point (TAP), one Mean Well DIN rail power supply, and a section of aluminium DIN rail.

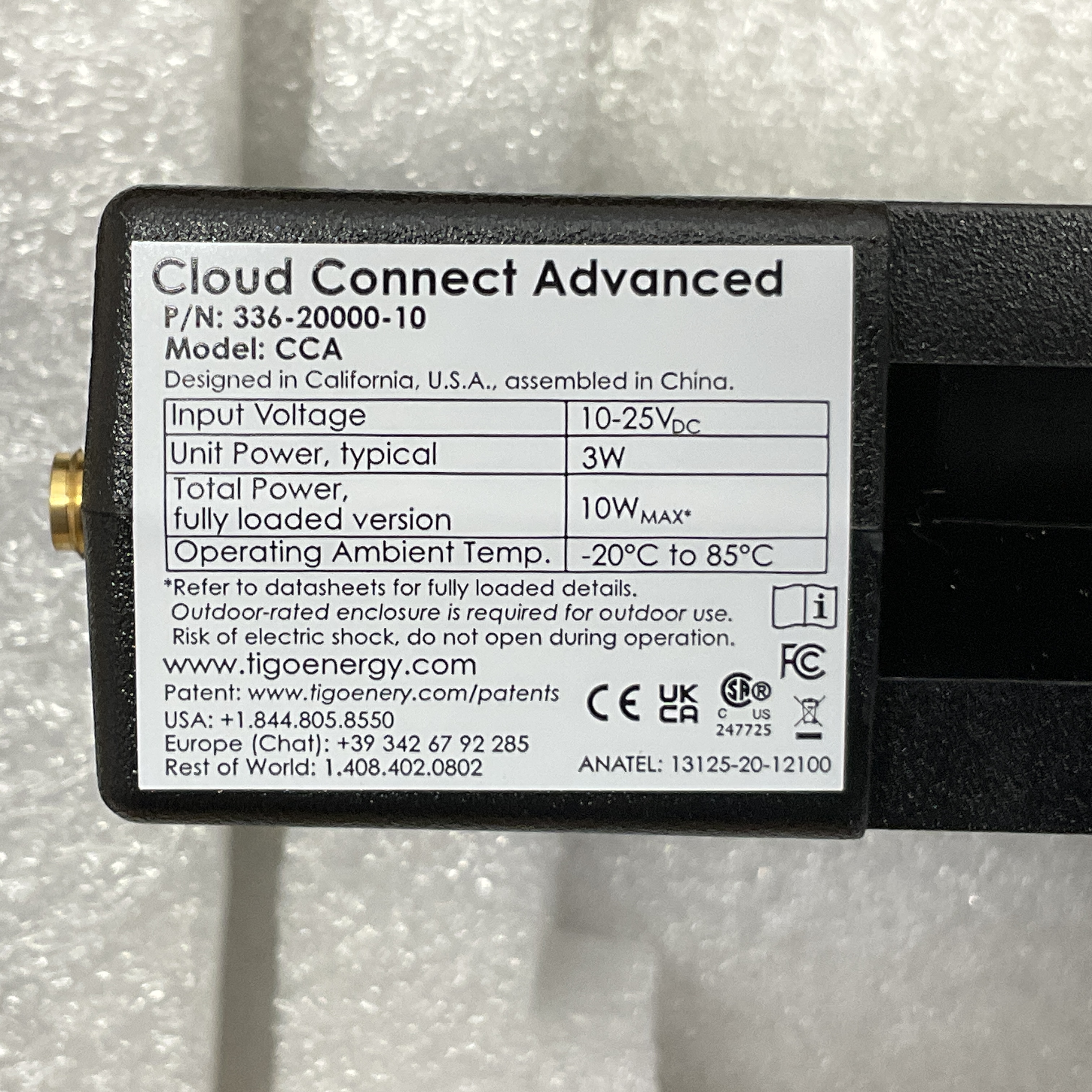

The Cloud Connect Advanced (CCA) units (Part Number 336-20000-10) are data loggers designed for system management and communication. Specifications include an input voltage of 10-25VDC, typical power consumption of 3W (10W maximum), and an operating ambient temperature range of -20 to 85 degrees Celsius. These units bear CE, UKCA, CSA, and FCC certifications.

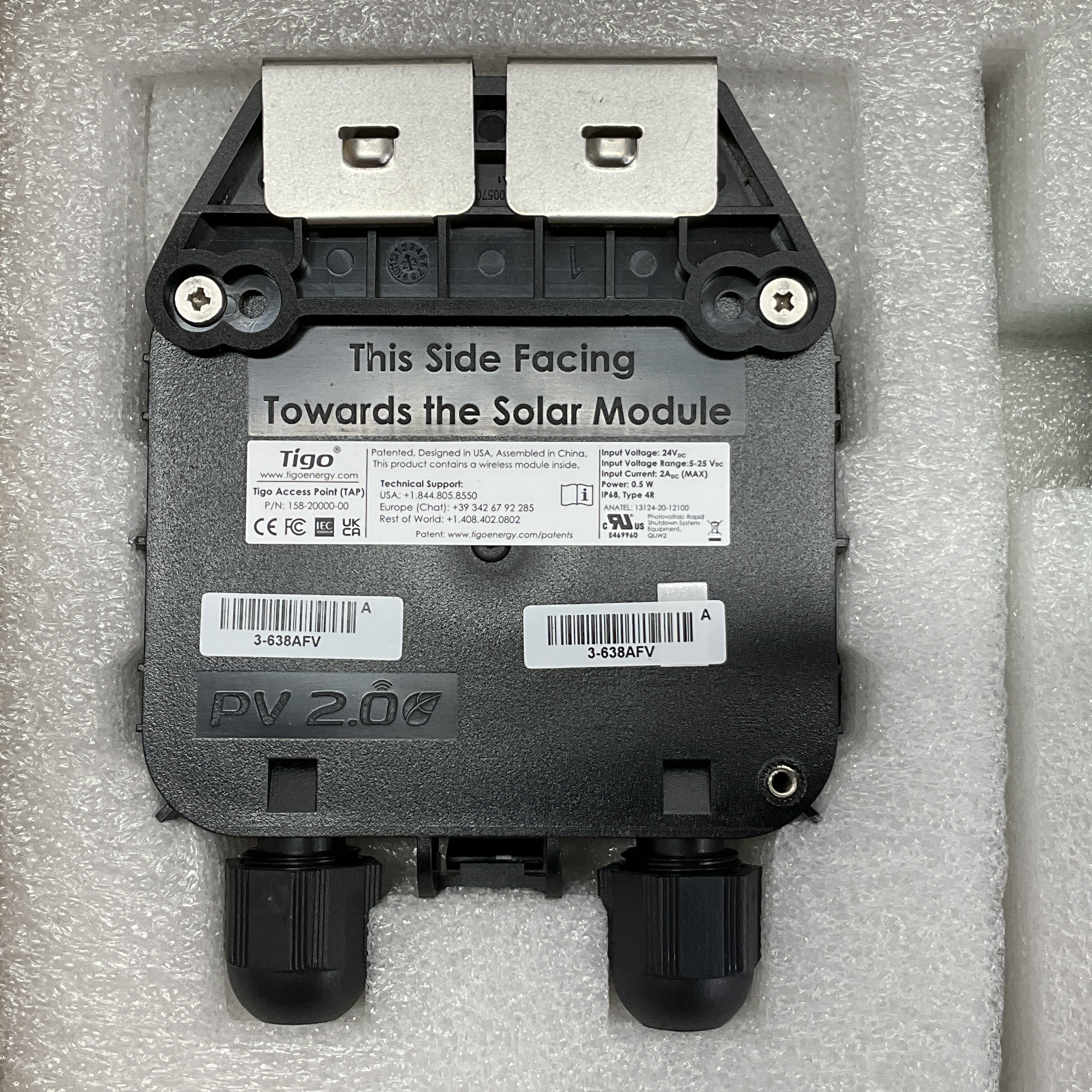

The Tigo Access Point (TAP) units (Part Number 158-20000-00) enable wireless communication between the CCA and individual module-level power electronics. They are rated IP68 and Type 4R for outdoor durability, with an input voltage range of 5-25VDC (24VDC nominal) and a maximum input current of 2ADC. Visible certifications include CE, FCC, IEC, UKCA, and cURus.

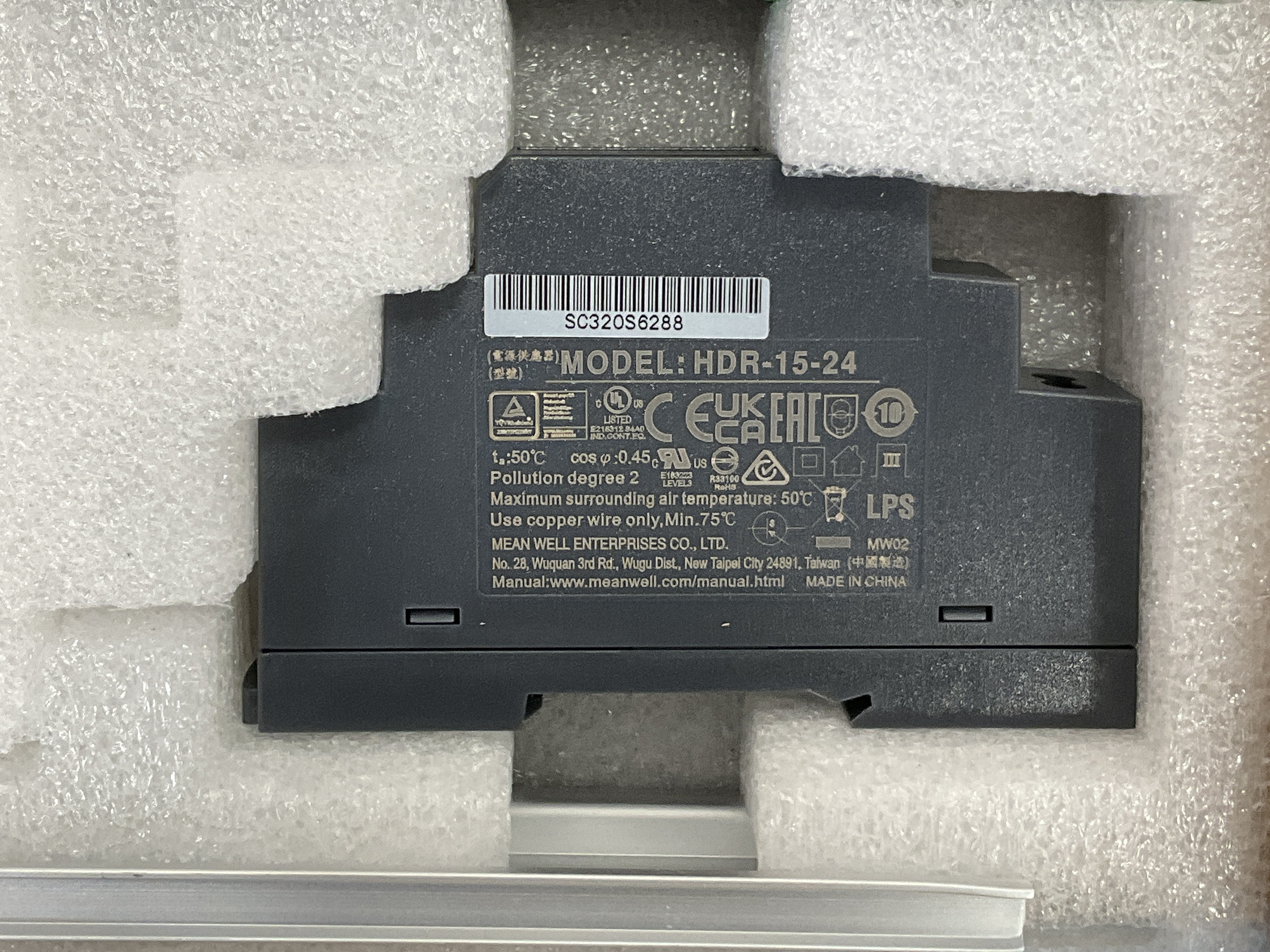

Each kit is supplied with a Mean Well HDR-15-24 DIN rail power supply, providing a 24VDC output. These units are UL Listed, TUV, CE, UKCA, EAC, and LPS certified. One power supply unit displays serial barcode SC320S6288. A short section of aluminium DIN rail is included in each box for mounting the CCA and power supply units.
Condition report:
The items appear unused and are in excellent condition, contained within their original protective foam inserts.
