160 lots located at Hailsham. Closing Sunday 26th July from 6pm.
Lot 107:
Description

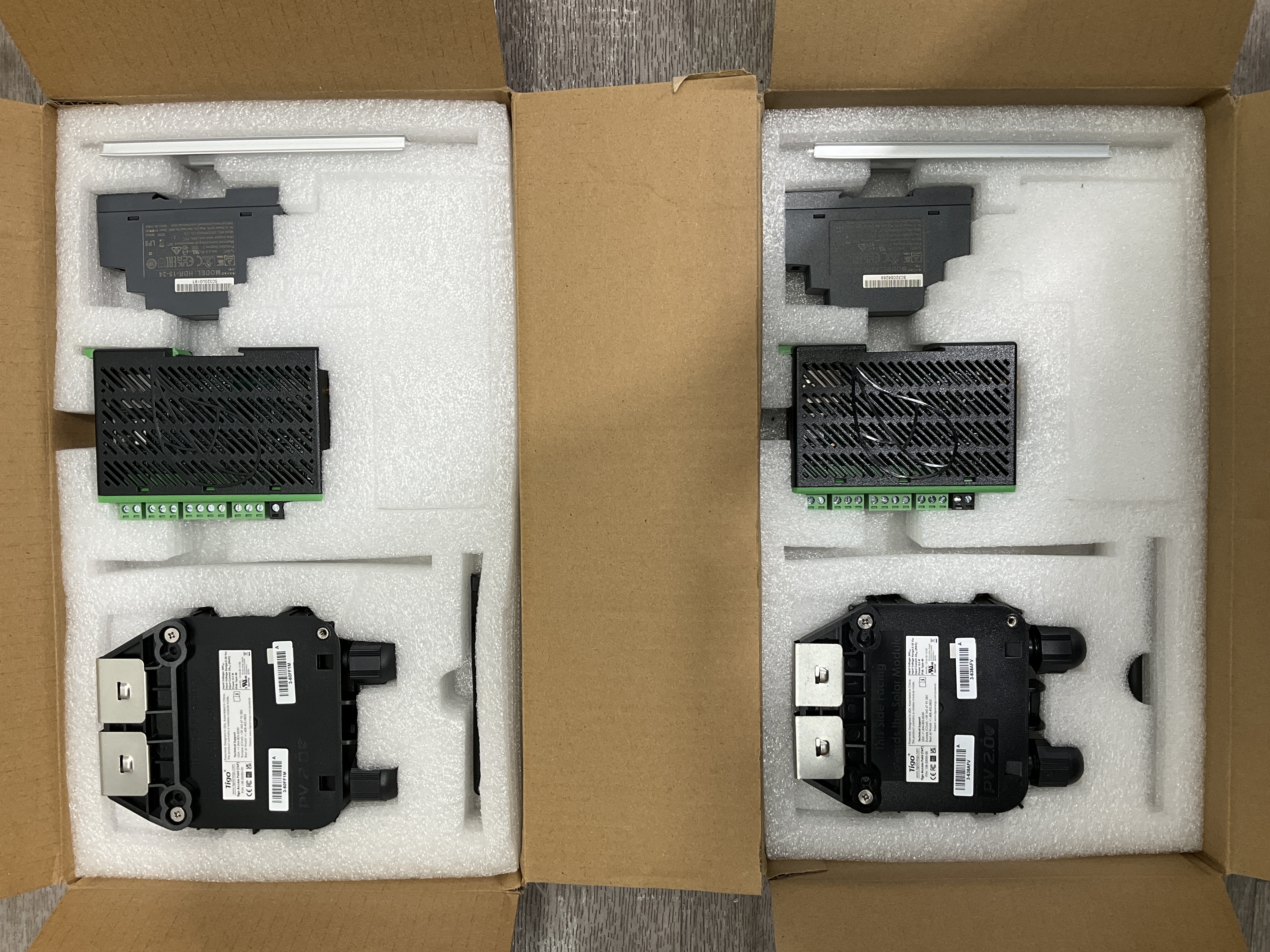

This lot comprises two complete sets of solar energy system monitoring and communication components manufactured by Tigo Energy, featuring power supplies by Mean Well. Each set is housed within a cardboard shipping box with protective foam inserts.

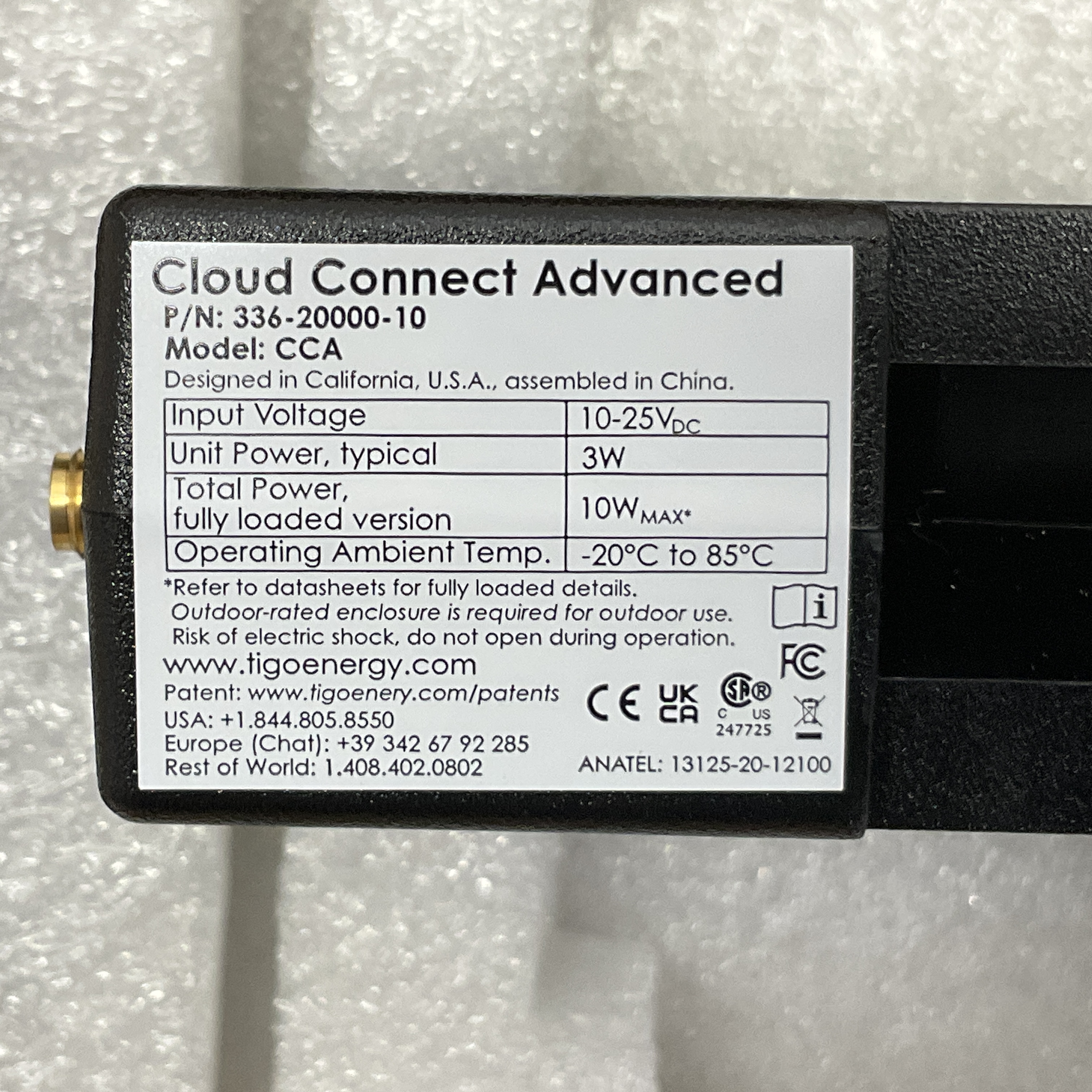

The first component in each set is the Tigo Cloud Connect Advanced (CCA), part number 336-20000-10. This unit serves as a data logger and management hub. Technical specifications include an input voltage of 10-25VDC, typical unit power of 3W, and a maximum total power of 10W. It features an operating ambient temperature range of -20 to 85 degrees Celsius and is equipped with a gold-plated SMA antenna connector. The unit is marked as designed in California and assembled in China, carrying CE, UKCA, CSA, and FCC certifications.

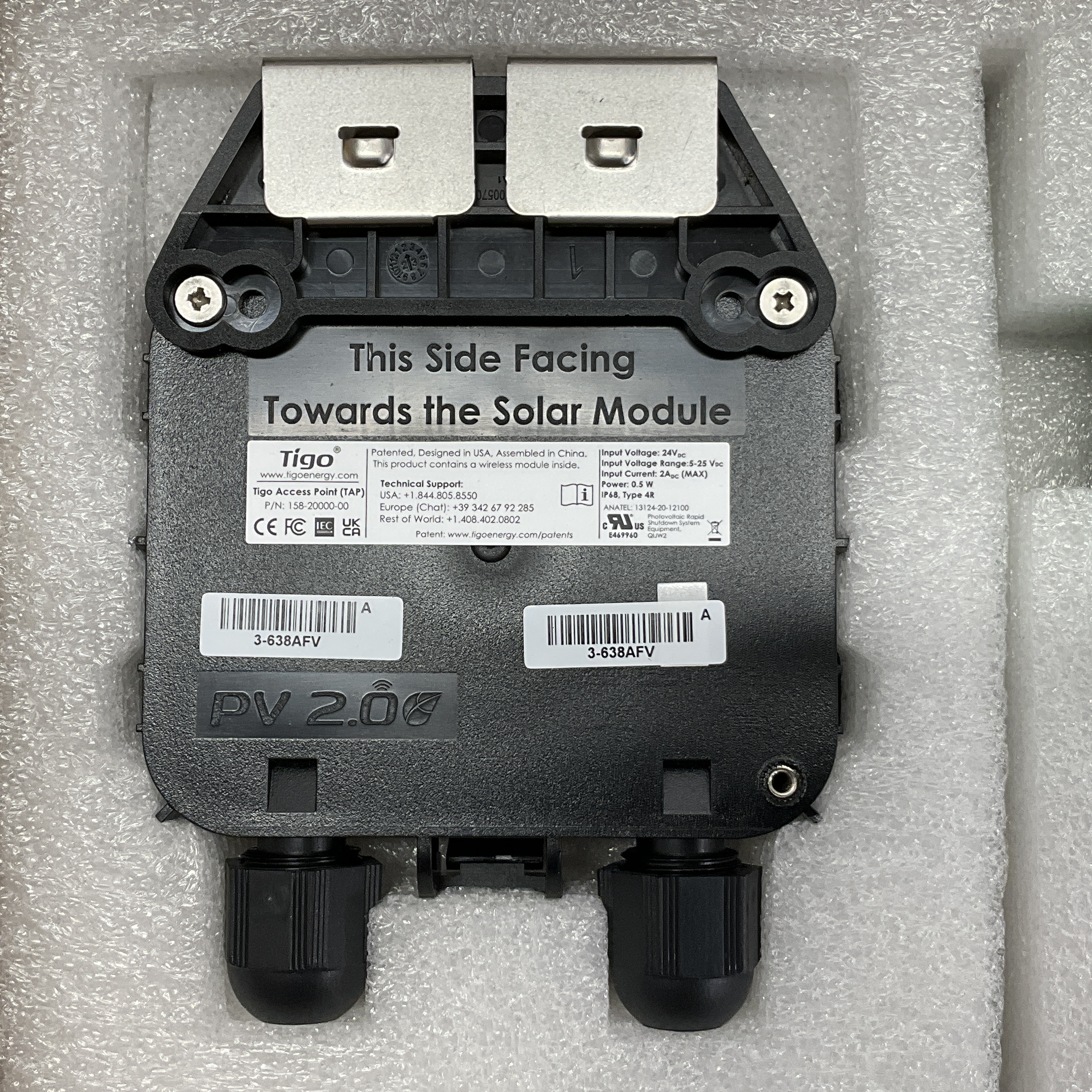

The second component is the Tigo Access Point (TAP), part number 158-20000-00. This wireless gateway communicates with module-level power electronics. It operates on a nominal 24VDC input (range 5-25VDC) with a power consumption of 0.5W. The enclosure is outdoor-rated to IP68 and Type 4R standards. The casing is embossed with This Side Facing Towards the Solar Module and PV 2.0. Certifications include CE, FCC, IEC, UKCA, and cULus Listed (E469960).

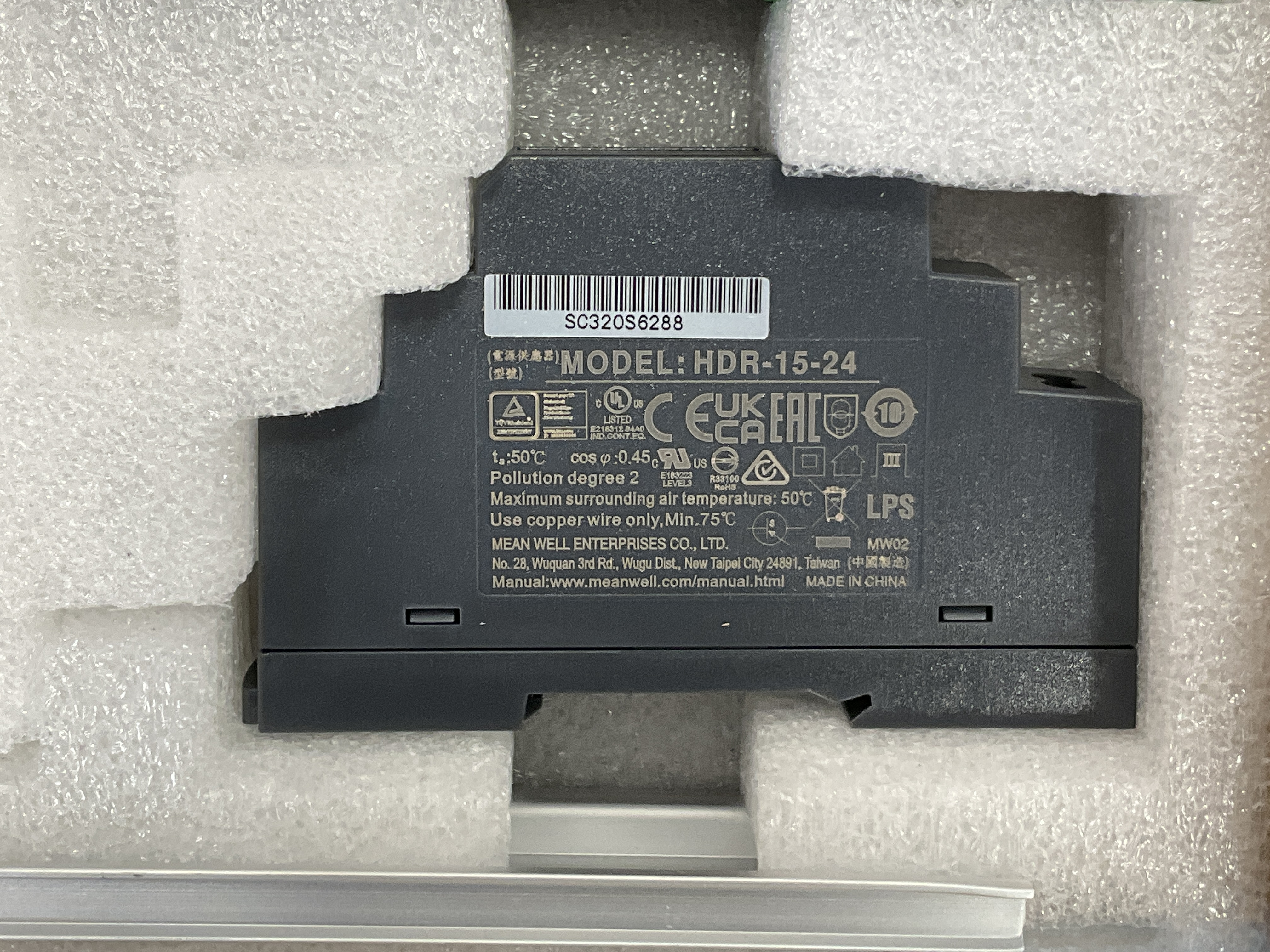

The third component is a Mean Well HDR-15-24 DIN rail power supply. This step-down unit provides a 24VDC, 0.63A (15W) output and is rated as a Limited Power Source (LPS). It carries UL, TUV, CE, UKCA, and EAC certifications.
Each kit also includes a short section of aluminium DIN rail for mounting the power supply and CCA unit.
Condition report:
All components appear to be in unused condition, still housed in their original shipping foam and cardboard boxes.
