160 lots located at Hailsham. Closing Sunday 26th July from 6pm.
Lot 109:
Description

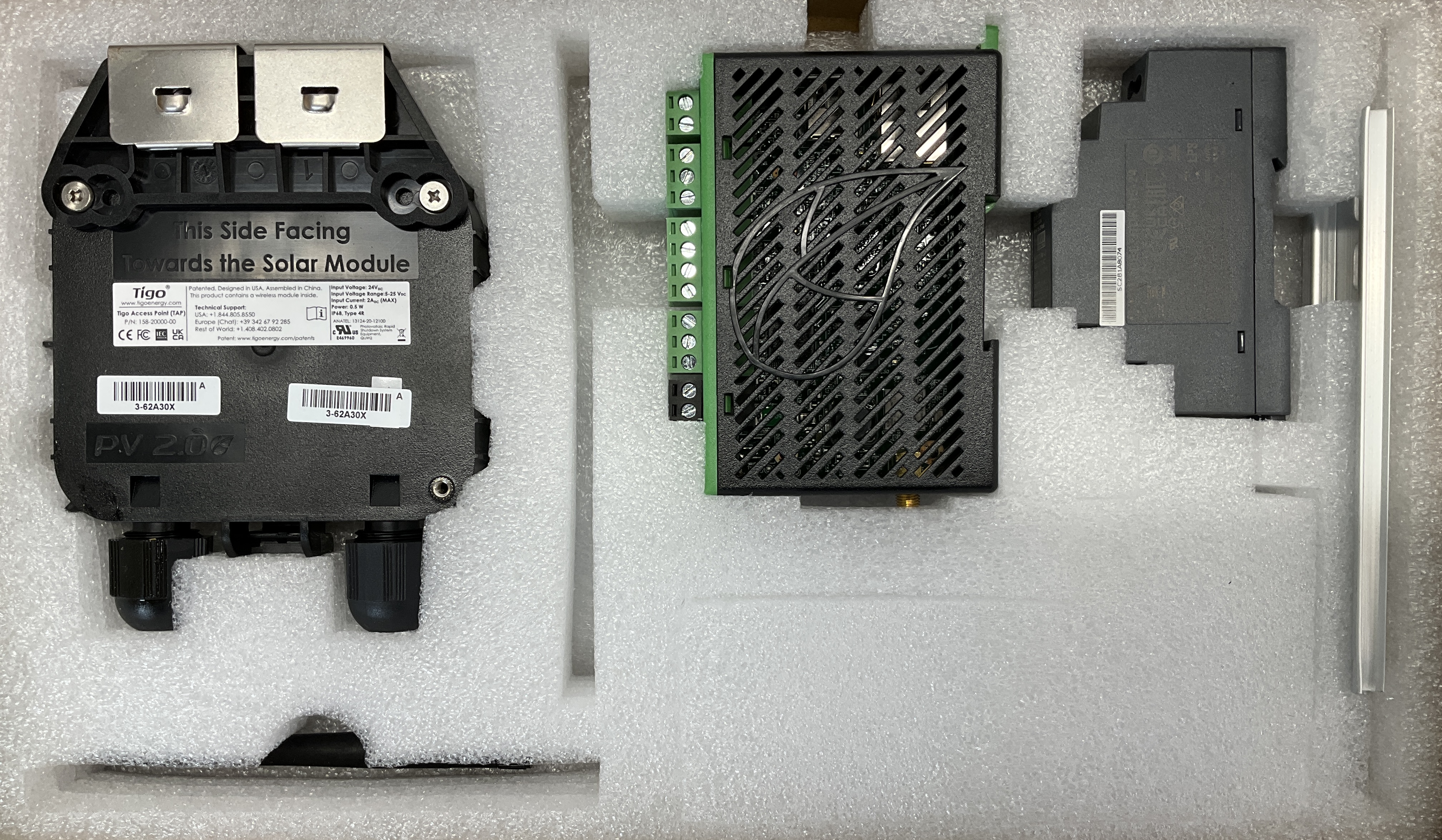

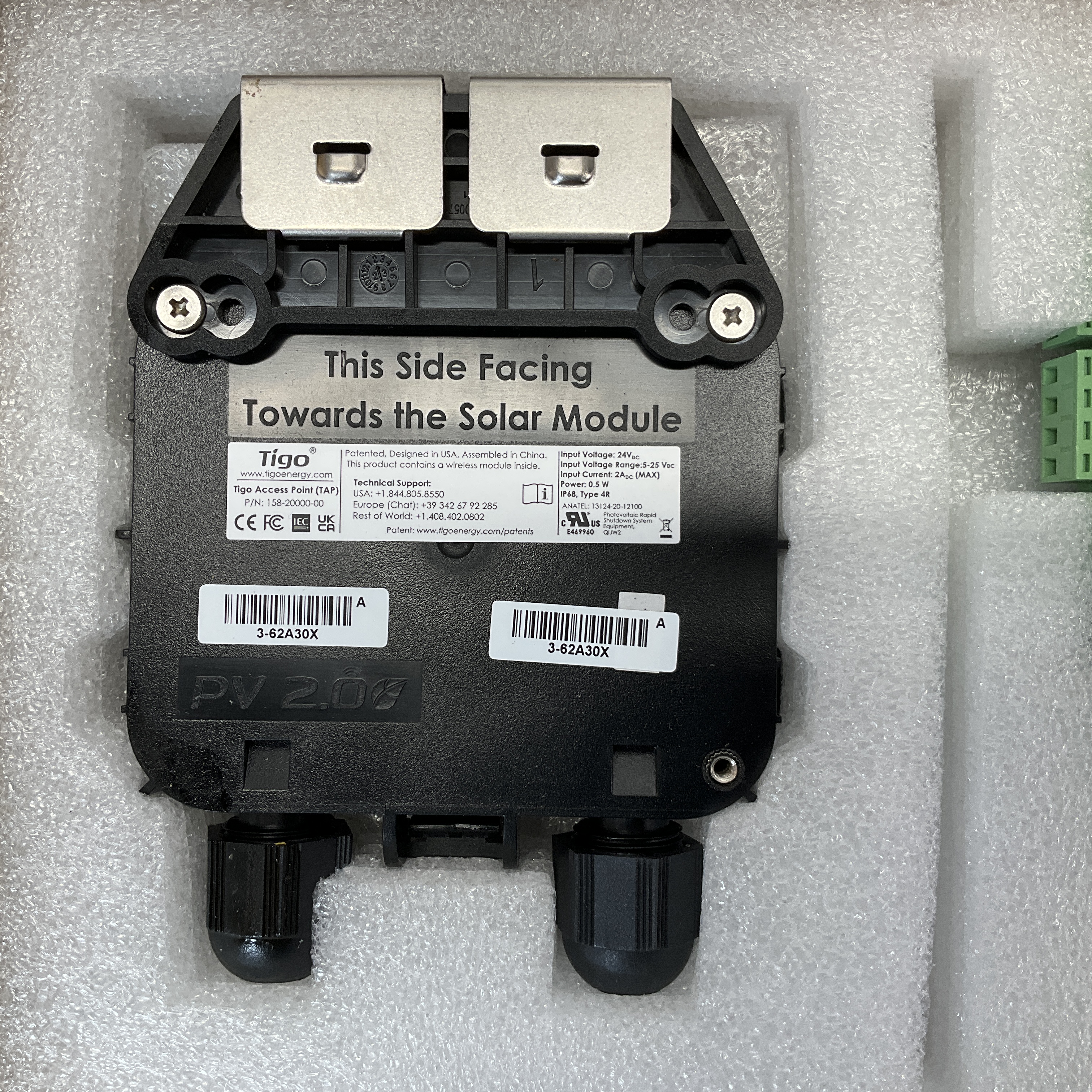

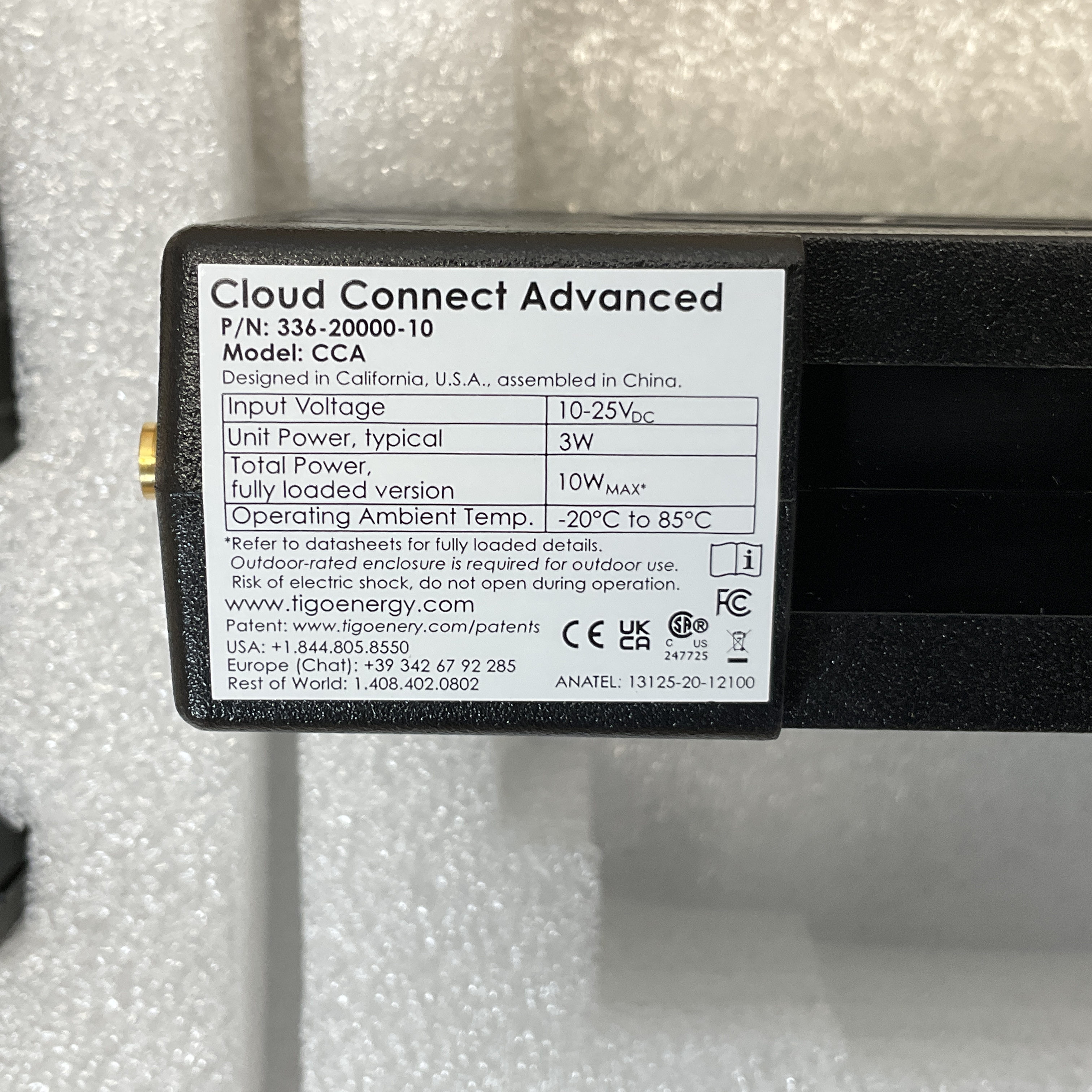

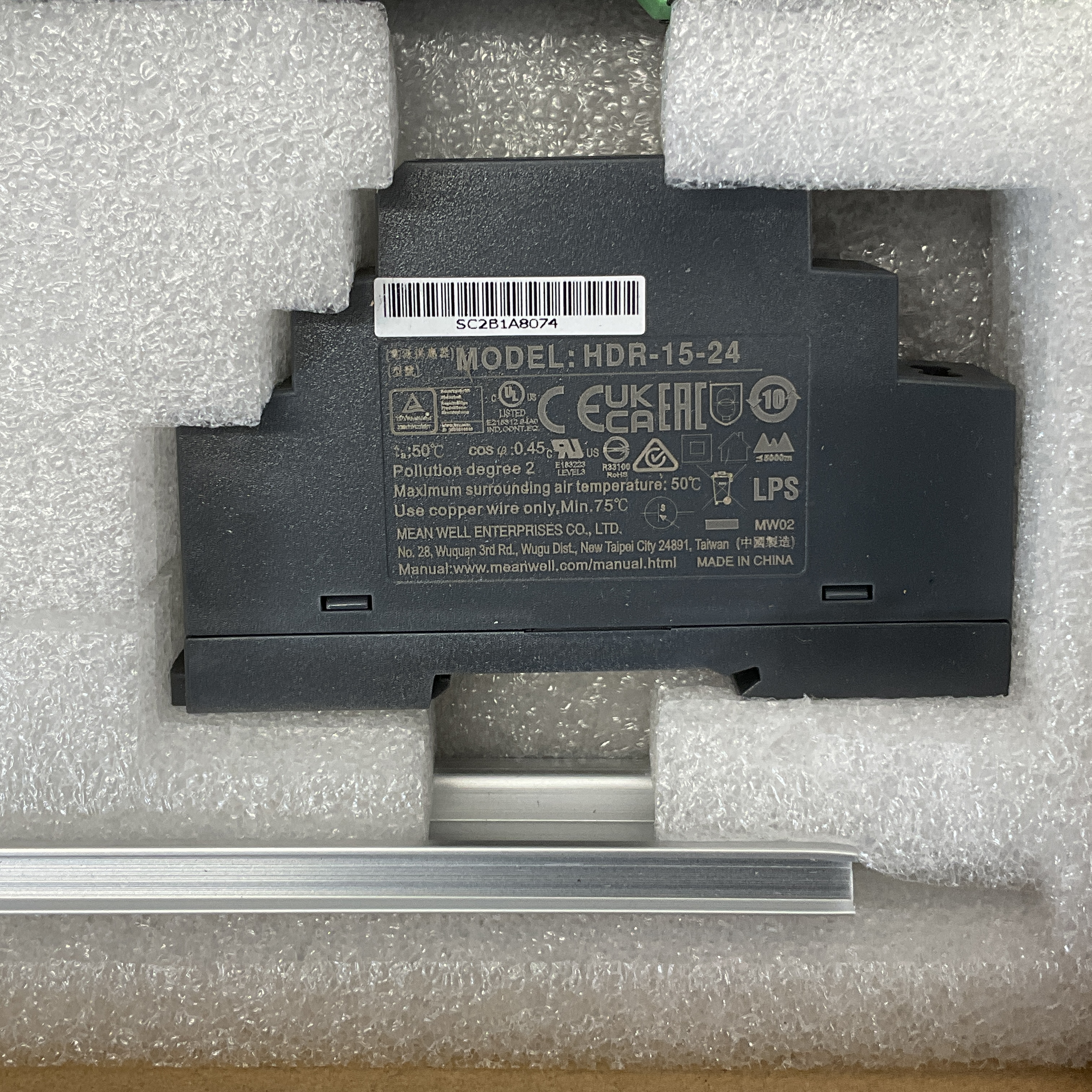

This solar monitoring and control kit is manufactured by Tigo Energy and comprises three primary components alongside a section of aluminium DIN rail. The first component is a Tigo Access Point (TAP), part number 158-20000-00, which serves as a wireless gateway for solar module optimisers. Technical specifications for the TAP include an input voltage of 24VDC (range 5-25VDC), a maximum input current of 2A DC, and a power consumption of 0.5W. It features an IP68, Type 4R enclosure and carries CE, FCC, IEC, UKCA, and cRUus certifications. The second component is a Tigo Cloud Connect Advanced (CCA) data logger, model CCA, part number 336-20000-10. This management unit operates on 10-25VDC with a typical power consumption of 3W (10W maximum) and is rated for temperatures between -20 and 85 degrees Celsius. It bears CE, UKCA, CSA, FCC, and ANATEL marks. The third component is a Mean Well HDR-15-24 slim-profile DIN-rail power supply designed to power the CCA and TAP. This unit provides a 24VDC output and carries TUV, cULus, CE, UKCA, EAC, and LPS certifications. All components are presented in their original foam-lined protective packaging.
Condition report:
The kit is in unused condition. There are no visible signs of previous installation, such as screw marks on mounting brackets or wire residue in the electrical terminals. The components remain in their original protective foam packaging.
