Lot 100:
Description

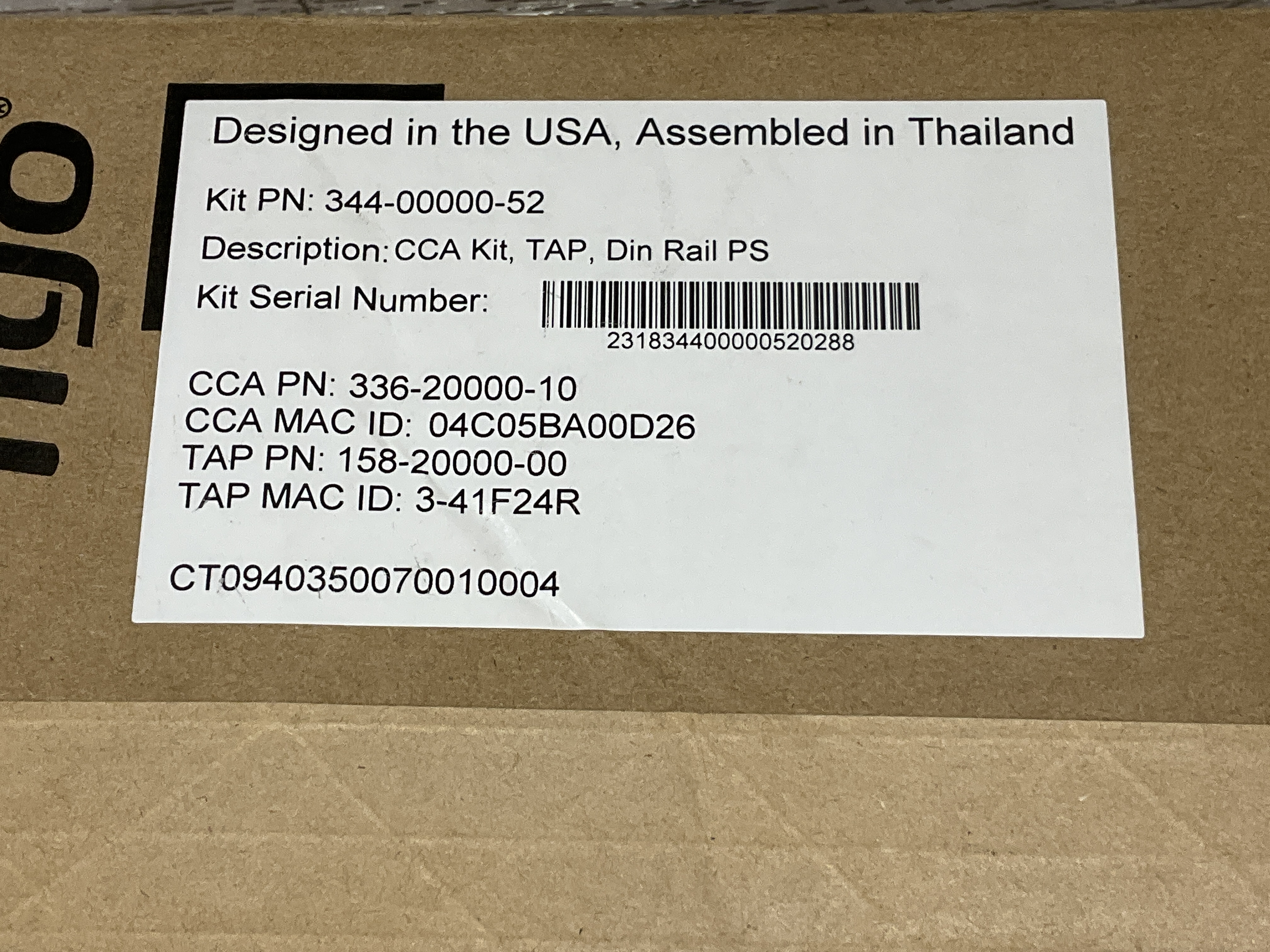

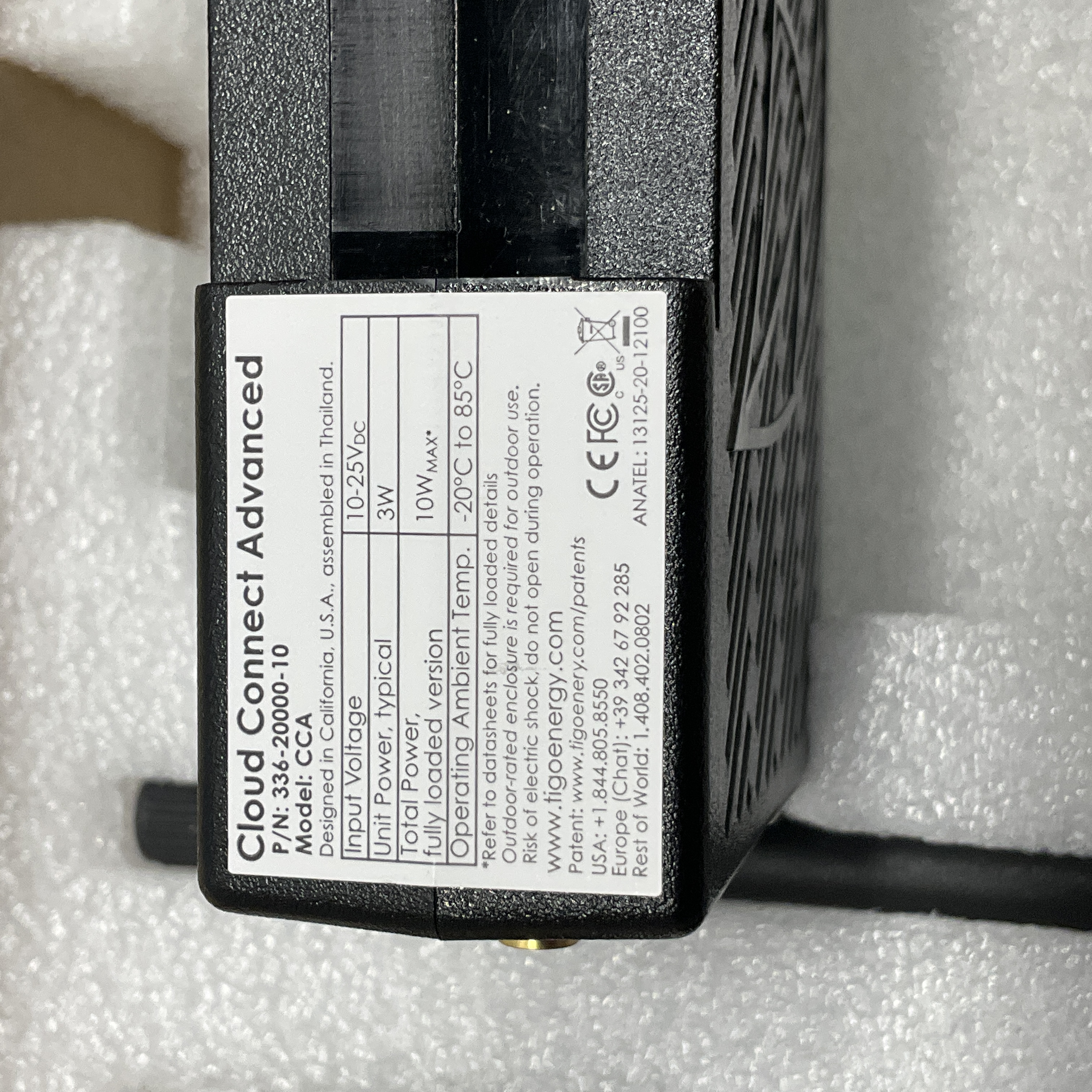

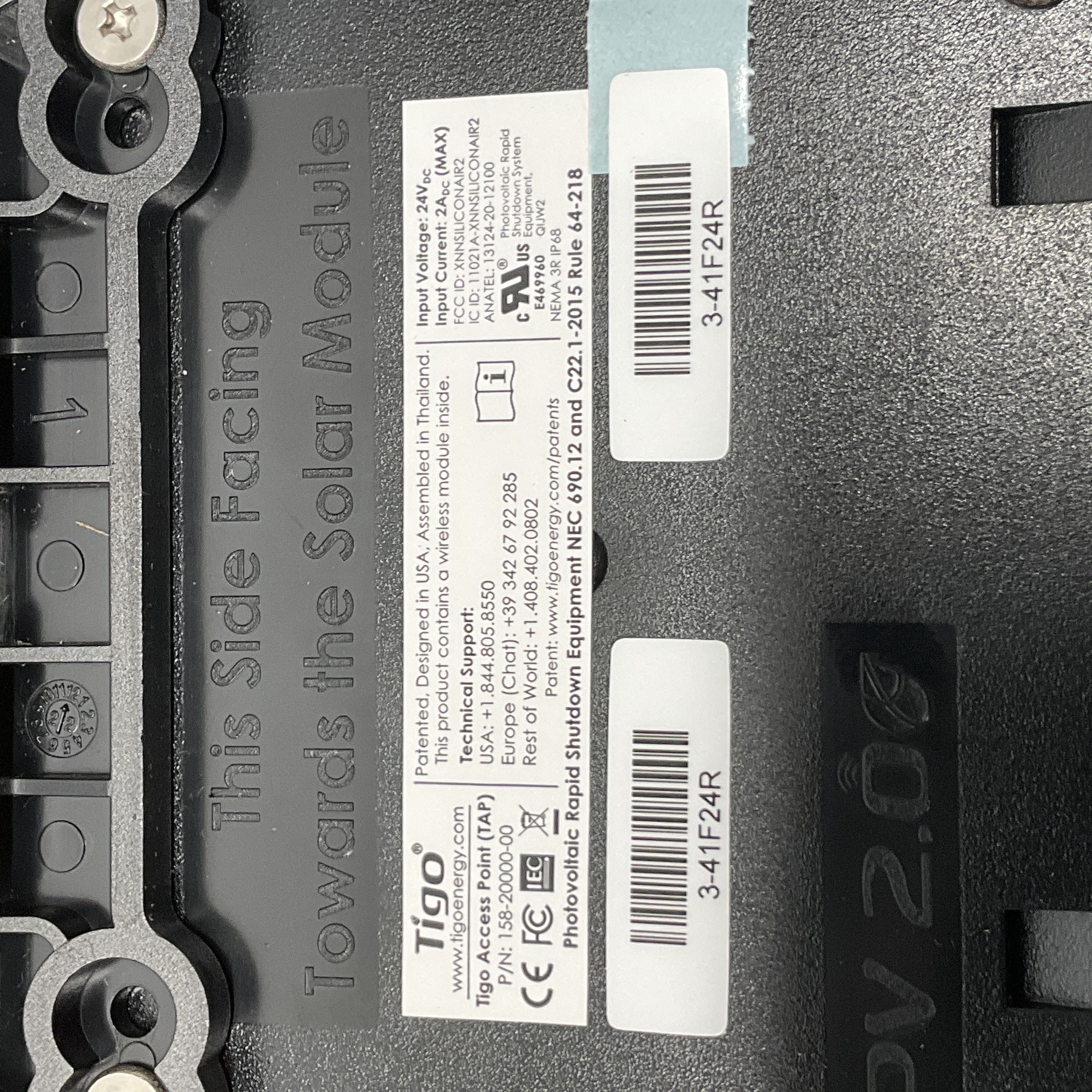

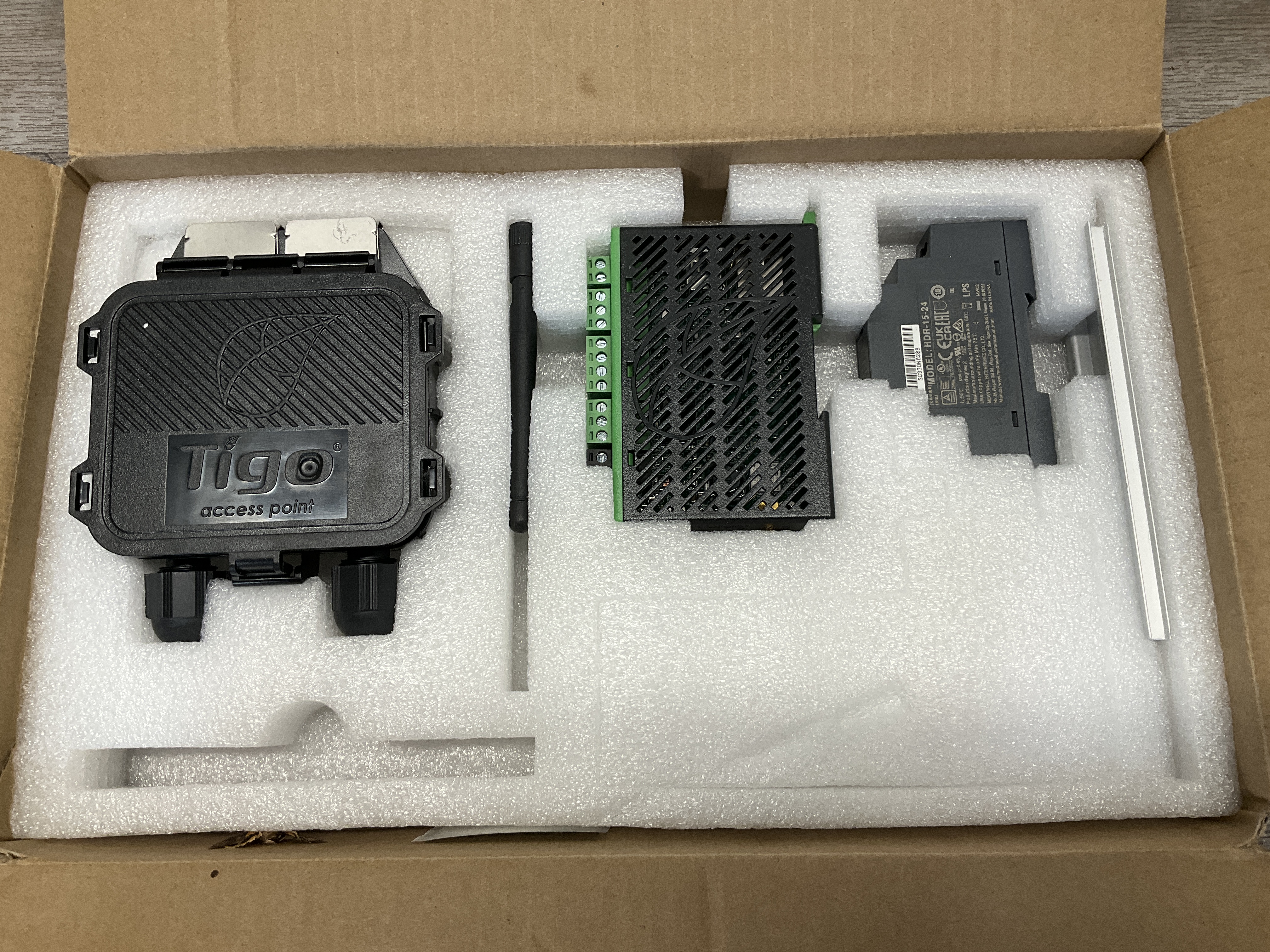

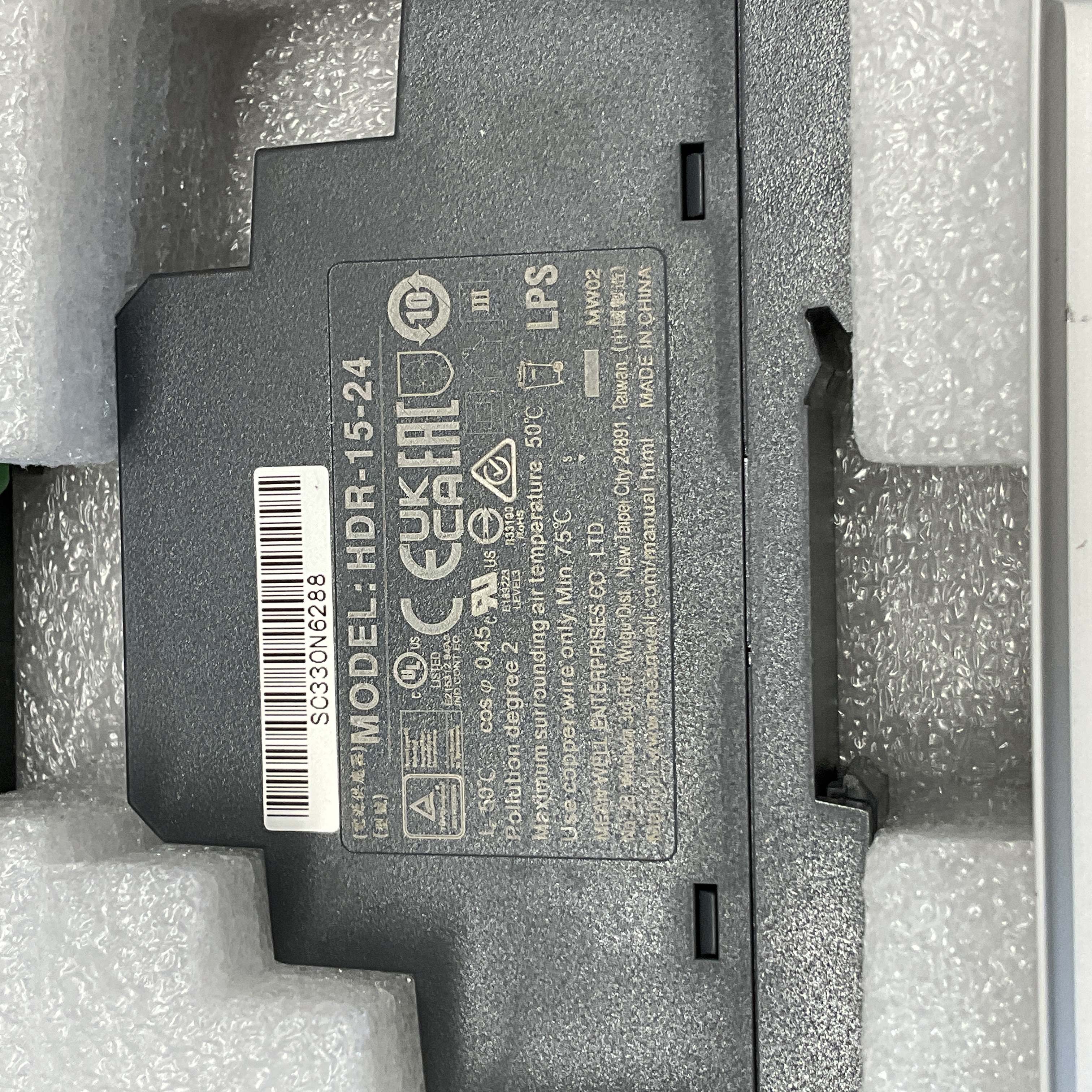

A complete, unused solar rapid shutdown and monitoring system kit manufactured by Tigo Energy, Inc., with the power supply manufactured by Mean Well. This kit is designated under Part Number 344-00000-52 and is designed for PV system monitoring and safety compliance. The kit contains the following individual components: 1. Tigo Cloud Connect Advanced (CCA) Part Number: 336-20000-10 Model: CCA Input Voltage: 10 to 25 VDC Power Consumption: 3 W typical, 10 W maximum (fully loaded version) Certifications: CE, FCC, CSA (cCSAus) MAC ID: 04C05BA00D26 2. Tigo Access Point (TAP) Part Number: 158-20000-00 Input Voltage: 24 VDC Input Current: 2 ADC maximum Enclosure Rating: NEMA 3R, IP68 waterproof rating Certifications: CE, FCC, UR (cRUus) MAC ID: 3-41F24R 3. Mean Well DIN Rail Power Supply Model: HDR-15-24 Input Voltage: 100 to 240 VAC, 0.48 A, 50/60 Hz (Single-Phase) Output Voltage and Current: 24 VDC, 0.63 A Certifications: UL Listed, CE, UKCA, EAC, RCM, TUV, LPS (Limited Power Source), Class II (double insulated) 4. Additional Included Accessories: One whip antenna for the CCA unit One metal DIN rail segment for mounting The kit is labelled with Kit Serial Number 23183440000520288. All components are designed in the USA and assembled in Thailand, with the power supply unit made in China.
Condition report:
Excellent, unused condition. All components are pristine and housed securely within their original custom-cut foam protective packaging inserts and original cardboard retail box.
